Sso Setup

SSO Setup #

This document explains how to set up Single Sign-On (SSO) for FunnelStory customers using SAML or OIDC IdPs through Descope tenants.

Steps to configure SAML / OIDC IdP for FunnelStory’ Customer #

Creating descope tenant #

  1. Go to https://app.descope.com/tenants and create a new tenant.
  2. Within the tenant settings, you will see a section titled SSO Setup Suite Configurations, open that and share the configuration link with the customer.

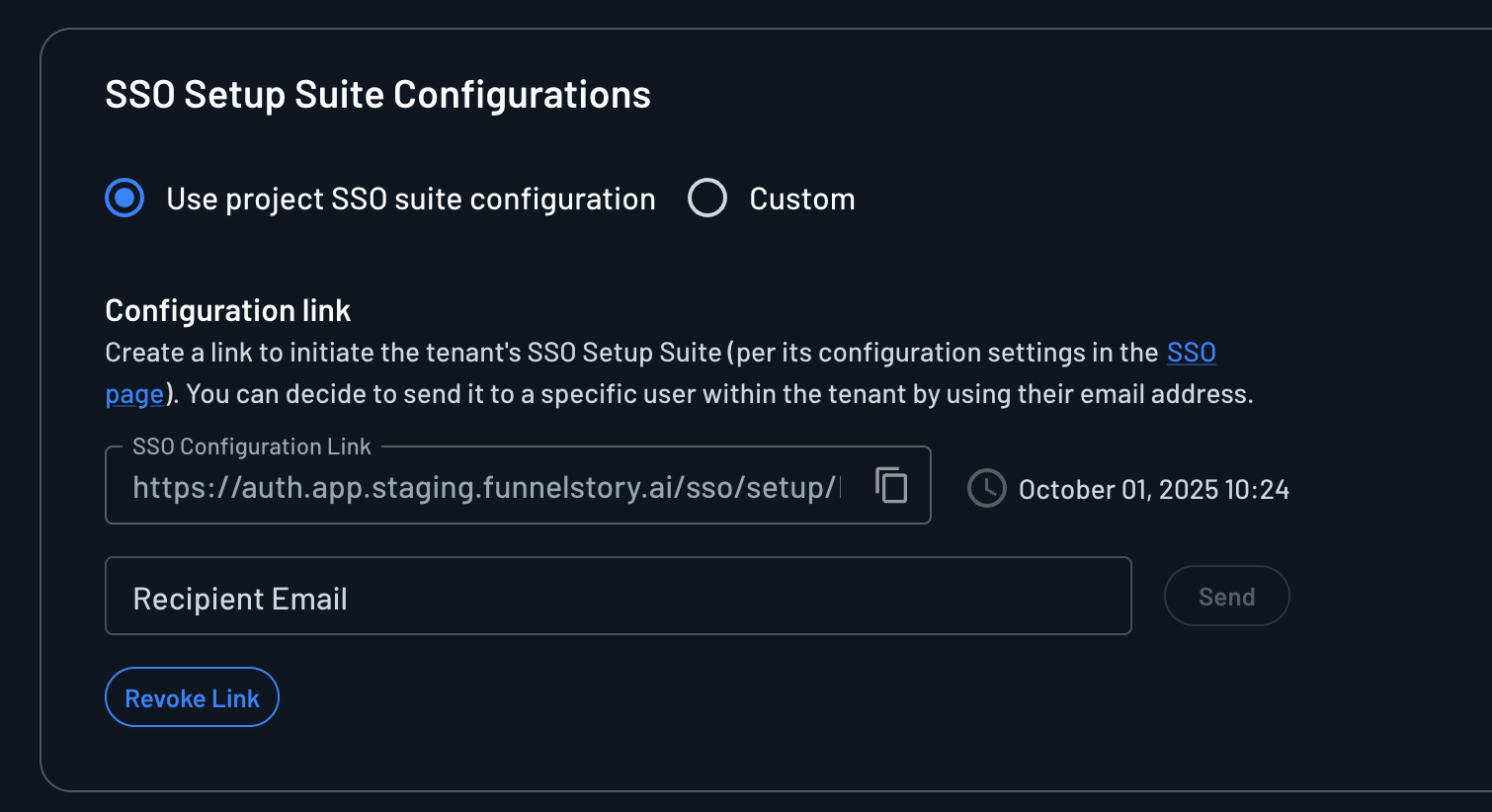

SSO setup configuration

  1. Now visit https://app.descope.com/settings/authentication/sso and add the value for Post redirect callback URL as https://app.funnelstory.ai/api/auth/sso/callback.` 3.1. Adding this to authentication methods directly will ensure that this does not need to be configured for every tenant separately

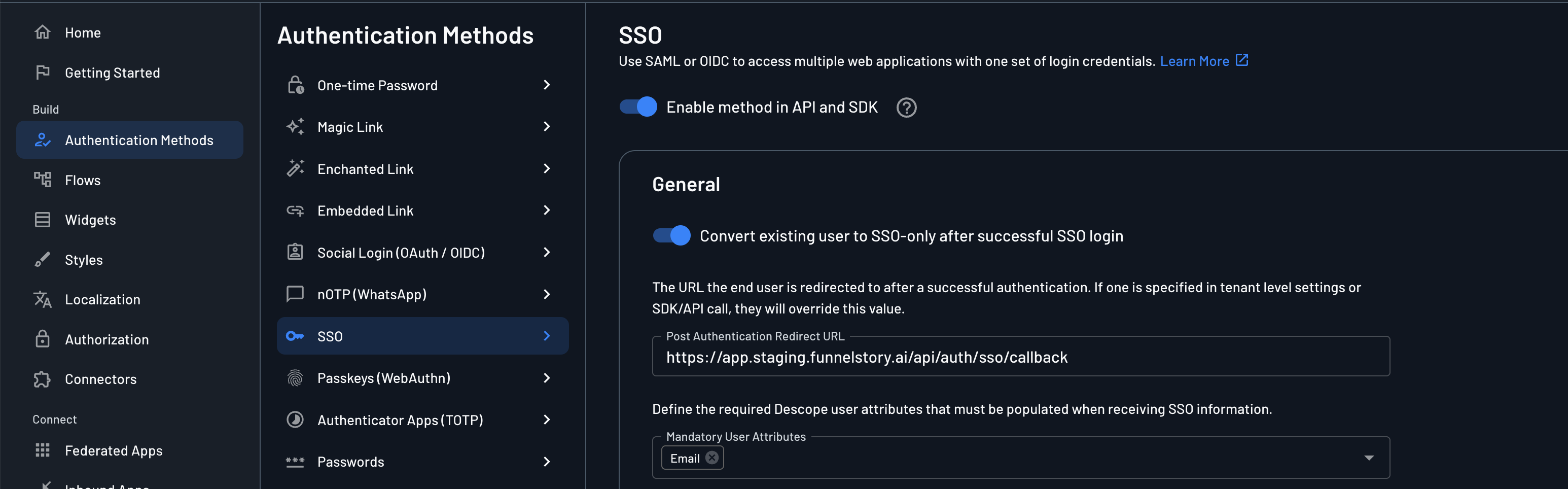

Redirect callback

  1. Ensure that in the authentication methods, email is added in the Mandatory User Attributes. 4.1. Also ask user to map this while configuring the SSO.
  2. Once the user configures the app properly, they should be able to login using the IdP initiated login.
  3. For SP initiated login, we right now only support email code, which users can get via the login page

How it Works #

  1. Descope Tenant: Each customer’s SSO configuration is managed within a dedicated “tenant” in Descope.
  2. New Endpoints:
    • /api/auth/sso/login: Initiates the SSO login flow. Requires a tenant_id URL parameter (e.g., ?tenant_id=...).
    • /api/auth/sso/callback: Handles the redirect from the IdP after successful authentication.
  3. IdP Configuration:
    • Redirect URL: IdPs must be configured to redirect to https://app.funnelstory.ai/api/auth/sso/callback after successful login. This is set in Descope for the tenant.
    • Email Attribute: All IdPs must send the user’s email as the email property in the SAML assertion/OIDC token.
  4. Login Flows Supported:
    • Service Provider (SP) Initiated: User starts login from FunnelStory, providing a tenant_id.
    • Identity Provider (IdP) Initiated: User clicks a FunnelStory app icon in their IdP (e.g., Okta, Google Workspace).
  5. User Management:
    • Upon successful SSO login, if the user doesn’t exist in FunnelStory, a user account will be created, and they will be sent to onboarding (existing flow).
    • Existing users will be logged in.
  6. Authentication Only (AuthN): This integration focuses solely on user identity verification. Authorization (what the user can do) is handled separately within FunnelStory.

Troubleshooting #

Possible issues:

{"errorCode":"E011003","errorDescription":"Request is invalid","errorMessage":"The RelayState field must be a valid value","message":"The RelayState field must be a valid value"}

Solution: Add redirect callback in Descope as https://app.funnelstory.ai/api/auth/sso/callback

SCIM #

How it works #

  1. Groups and SCIM Configuration: Customer needs to setup SCIM configuration from IdP via the Descope SSO suite. The SSO configuration needs to have groups mapping for roles to work.
  2. Workspace Tenant Mapping: After a user creates the SCIM configuration, we need to create a mapping from workspace <> tenant in descope. That can be via POST /api/workspace/tenant_mapping with payload as { tenant_id: "xxx" }. Where tenant_id is available in descope - https://app.descope.com/tenants.
  3. IdP to Descope sync: Each user is synced from IdP via the SCIM provisioning to Descope. Users map from group in IdP to specified role as per the SSO configuration. Users with only the tenant_id mapped to workspace are fetched from Descope.
  • If a user is removed from the group in IdP then the user’s status is updated to disabled in Descope.
  • If a user is deleted from the IdP, then the user is deleted in Descope.
  1. Descope to FunnelStory sync: FunnelStory syncs the user from Descope via GET /api/workspace/users?sync=true endpoint. This endpoint is called once a user visits /admin/team page on the UI.
  • If a user is not present in the workspace and is available via descope API, it is added to the workspace with sso as true along with the role from the user tenant’s. We pick the first role that matches in the pre-defined role and use that. If not role is matched then account_user is considered as the default role.
  • If a user was synced in DB as sso and is now not available in the Descope users list or has status disabled then we set the deactivated_at for the user.
  • If a user’s role has changed in Descope (via IdP group mapping), then the user is updated in the DB with the updated role.

Configuration #

Internal: #

  • Add DESCOPE_MANAGEMENT_KEY in the environment variables.
    • It should only require Asset Management - Read Only role as we are only reading the users from descope.
  • Create roles in FunnelStory Production project in descope. Ensure all the available roles in FunnelStory are added properly.
    • Keep the roles lower cased and same as what is expected in the API which is like: super_admin, data_admin…
  • Never delete SCIM role in Descope console as that will break the SCIM configuration.
    • If this is broken, please rotate the key for tenant (can be done via the sso configuration page) and ask customer to update same on the IdP’s Application.
  • For enabling the users sync on a workspace, we will also need to add tenant_mapping which can be done by calling POST /api/workspace/tenant_mapping with payload as { tenant_id: "xxx" }.
  • Hide the Tenant Admin and SCIM role by editing the same so that it is not visible to the customers while configuring the SSO.
    • Option to edit the Tenant Admin might be limited to the project owner.

Customers: #

  • To assign roles to SSO users in FunnelStory, customers need to ensure that users are part of some group.
  • For the attribute name, it can be named as groups in the IdP and ensure that the SSO setup is also using the same name for the field.
  • While configuring the SSO from Descope SSO configuration suite, ensure that the group name exactly matches what is entered in the configuration setup.
  • Ensure that no default role is selected / configured. FunnelStory assigns admin_user as the default role automatically.
  • For group mappings, ask users to add the Groups attribute name same as what they configure in the IdP. It should match in the SSO configuration setup as well as IdP for correct group mappings.
  • If a user’s group is changed in the IdP then ensure that the group is synced again either manually or automatically to reflect the changes in FunnelStory for user’s role.
    • For Okta, it does not sync the groups as soon as there is an update so if the changes are not reflected in FunnelStory, ensure the groups as pushed / synced again.

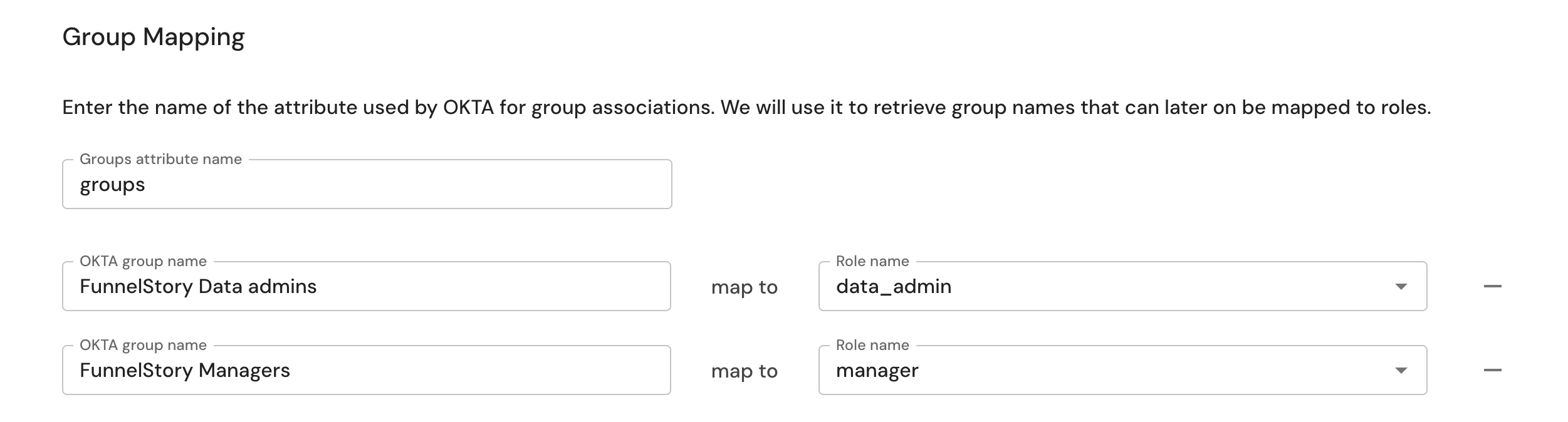

Group mapping
